Outdoor 100 Watt IP65 LED Street Lighting Aluminium Modular
160lm W Outdoor LED Street Light 100w IP65 Aluminium Modular LED Road Lamp
1. Specification of Leyond Galaxy LED Street light 100W
| Par NO Parameter | LY-ST60100PW | LY- ST60100WW | LY- ST60100NW |
| Inptut voltage | AC100V～305V 50/60HZ |
| Sysem consumption(W) | 100 | 100 | 100 |
| Luminous flux(lm) | 16800 | 15000 | 16100 |
| Chip Brand | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 |
| Color Temperature | Pure white:5000-6500K | Warm white:2700-3200K | Neutral white:4000-4500K |
| CRI | ＞70 |
| Beam Angle | 150*60 DEG |
| LED Driver | INVENTRONICSEUM-100 |
| Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP65 |
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 252x220x128 | 252x220x128 | 252x220x128 |
| Net Weigh(kg) | 2.8 | 2.8 | 2.8 |
| Package Size(mm) | 290*250*180 | 290*250*180 | 290*250*180 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 3.7 | 3.7. | 3.7 |
2. Features of Leyond Galaxy LED Street light 100W
• Absolutely unique mold,make your lighting special and fantastic.
• The appearance of body: aluminum alloy die-casting
• High quality power supply, input voltage 100-305V. The power efficiency is more than 90%, power factor greater than 0.98.
• Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP65.
• Work without strobe, fast transient response；A wide range of working voltage.
3. Application of Leyond Galaxy LED Street light 100W
Suitable for the highways,urban roads and secondary roads,stadiums,sidewalks,residential areas,industrial areas,squares,parks,schools,villas,gardens and other places.

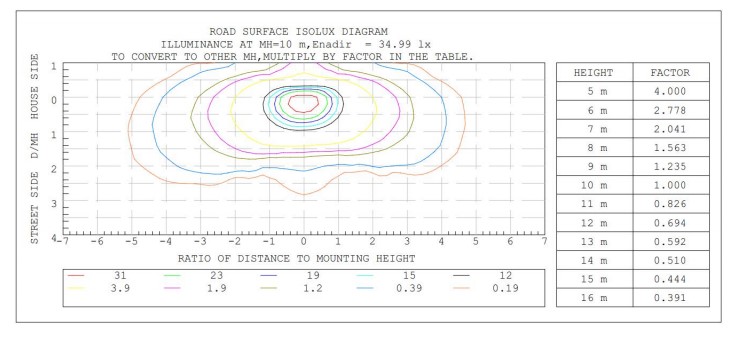

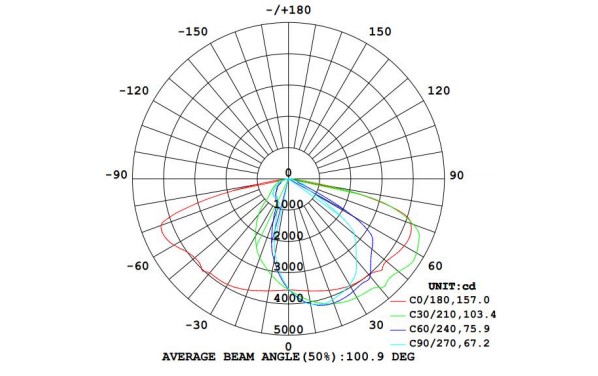

4. Distribution Curve
5. Operation and Storage Condition
Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
Input Voltage 100~305V AC, 50/60Hz
Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%
Mounting Height : Suitable for 6~10m height
6. Optional function

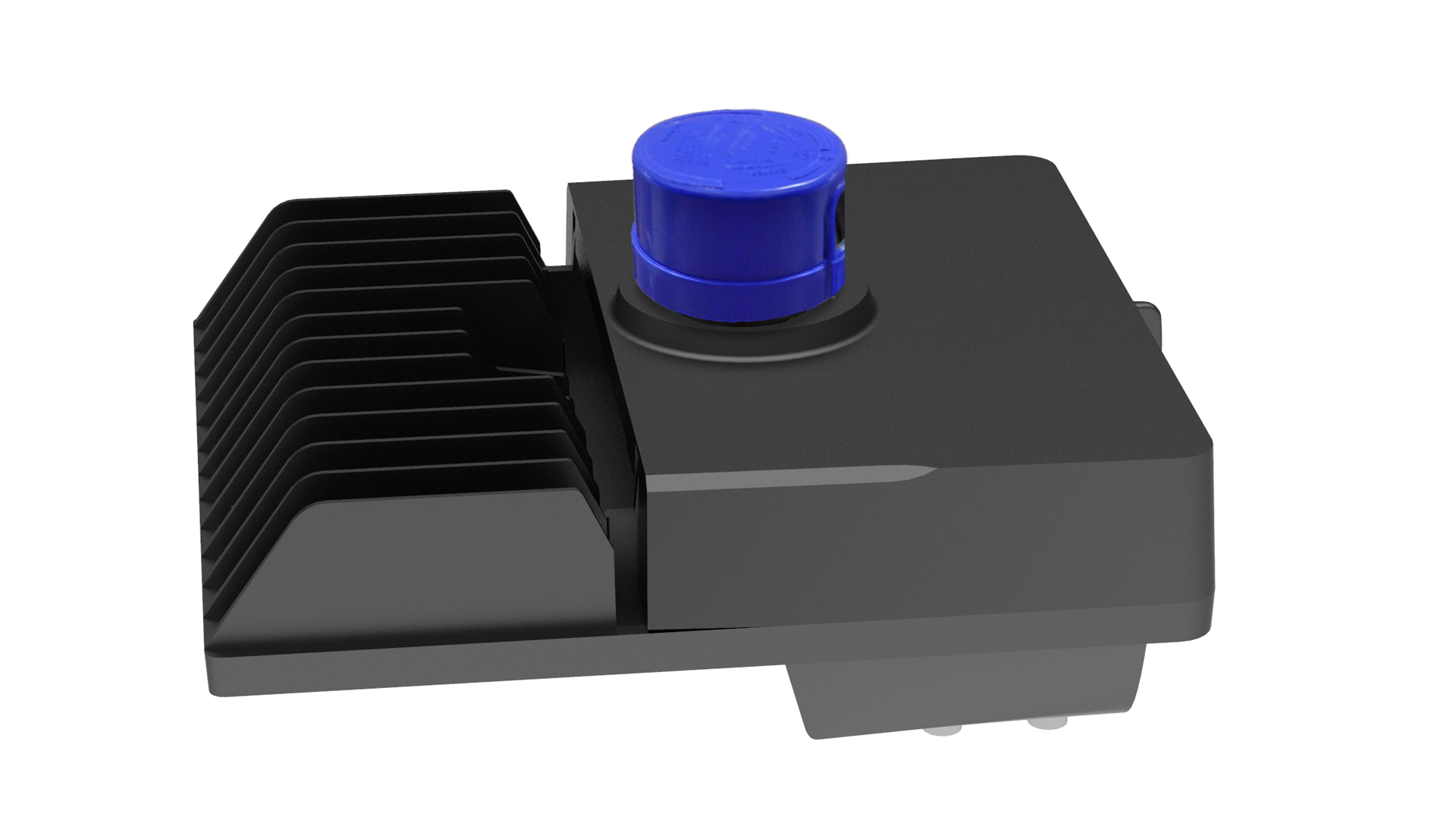

1) Daylight automatically controlling ON / OFF
Turn-On Light Level: 10 Lux or at customer’s request
Turn-Off Light Level: 50 Lux or at customer’s request
Turn-On Time Delay: 10-15s
Turn-Off Time Delay: 10-15s
7. Package
Inner box Size: 290mm×250mm×180mm
Outer box Size: 310mm×265mm×400mm (2 PCS LED Street Light)
8. Warning
Do Not Use Other Devices for LED Street Light ,Installation Such as
Stabilizer, Regulator …etc
Do Not Open the Light Engine
Do Not Soak the LED Street Light into Water
Do Not Light up the System Without Grounding
1-10V dimming need to be customized
